Small-Diameter Shield Tunnelling Machine
小型/微型盾构机
Small-diameter shield tunnelling machines designed for shallow-buried urban tunnel construction, covering EPB and slurry balance configurations for drainage, heating, gas, power, communication and other utility tunnel applications.
面向城市浅埋小型隧道施工的小型/微型盾构设备，涵盖土压平衡式和泥水平衡式机型，适用于排水、热力、燃气、电力、通信等市政管线隧道工程。
Supplied by XCMG-Kaigong Heavy Industry Nanjing Co., Ltd.
Overview
Product overview
Kaigong’s small-diameter shield tunnelling machines are designed for shallow-buried urban tunnel projects where compact alignment control, reliable ground adaptation and efficient construction performance are required. The product range covers both earth pressure balance shield machines and slurry balance shield machines, supporting different geological and groundwater conditions.
The machines are suitable for small tunnel construction in municipal drainage, heating, gas, power, communication, lighting and other urban utility sectors. With high equipment configuration, compact turning capability, strong gradeability and efficient tunnelling performance, the machines can be applied in soft soil, sand, sandy gravel, rock and mixed ground conditions.
Representative machine configurations include a Φ4240mm small EPB shield machine and a Φ5080mm small slurry shield machine, providing project-specific options for different ground conditions, tunnel diameters and construction requirements.
凯宫小型/微型盾构机面向浅埋城市小型隧道工程开发，适用于对线路控制、地层适应性和施工效率要求较高的市政管线隧道施工场景。产品体系涵盖土压平衡式盾构机和泥水平衡式盾构机，可根据不同地层条件和地下水环境进行配置选择。
该系列设备可广泛应用于城市排水、热力、燃气、电力、通信、照明等管线隧道工程。设备配置水平高，具有较小转弯半径、较强爬坡能力和较高施工效率，可适应软土、砂层、砂卵石层、岩层及复合地层掘进需求。
典型机型包括 Φ4240mm 小型土压盾构机和 Φ5080mm 小型泥水盾构机，可根据项目地质条件、隧道断面和施工组织要求进行选型。
Applications
Typical applications
- Urban drainage tunnel construction
- Heating pipeline tunnel construction
- Gas utility tunnel construction
- Power cable tunnel construction
- Communication and lighting utility tunnels
- Shallow-buried small-diameter tunnel projects
- Small-radius urban tunnel alignment construction
- Tunnel construction in soft soil, sand, sandy gravel and mixed ground conditions
- 城市排水隧道施工
- 热力管线隧道施工
- 燃气管线隧道施工
- 电力管廊及电缆隧道施工
- 通信、照明等市政管线隧道施工
- 浅埋小断面隧道工程
- 城市小半径曲线隧道施工
- 软土、砂层、砂卵石层及复合地层隧道掘进
Features
Key product features
- EPB and slurry balance configurations available
- Designed for small-diameter urban tunnel applications
- Suitable for shallow-buried utility tunnel construction
- Compact turning radius for complex urban alignments
- Strong gradeability and efficient tunnelling performance
- Adaptable to soft soil, sand, gravel, rock and composite ground
- Active articulation system for improved alignment control
- High-capacity cutterhead drive, thrust system and material transport system
- 可提供土压平衡式和泥水平衡式配置
- 面向城市小断面隧道工程开发
- 适用于浅埋市政管线隧道施工
- 转弯半径小，适应复杂城市线路条件
- 爬坡能力强，施工效率高
- 可适应软土、砂层、砂卵石层、岩层及复合地层
- 采用主动铰接形式，提高线路控制能力
- 配置较高能力的刀盘驱动、推进及出渣/排浆系统
Offering Details
Technical Details & Applications

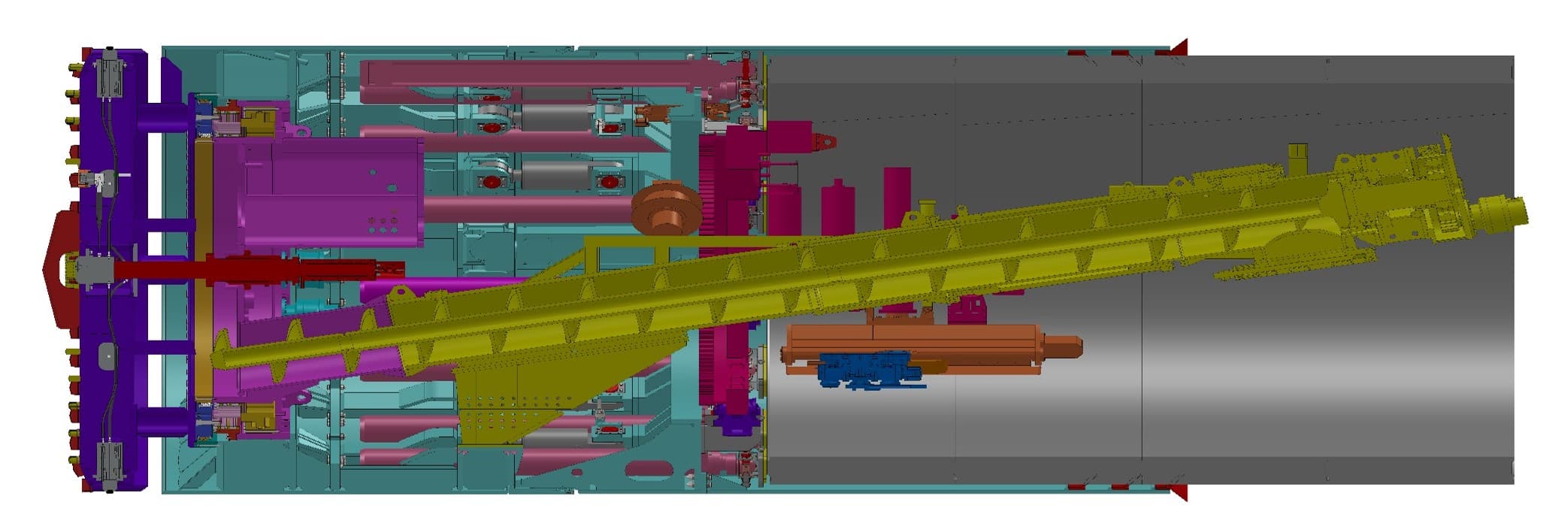

Representative EPB Shield Machine
- Machine type: Small earth pressure balance shield machine
- Excavation diameter: Φ4240 mm
- Opening ratio: 65%
- Cutterhead type: Spoke-type cutterhead
- Minimum turning radius: 100 m
- Drive system: Hydraulic drive, 10 units
- Rated torque: 2450 kN·m
- Cutterhead speed: 0–3 rpm
- Maximum advance speed: 80 mm/min
- Maximum thrust: 18,200 kN
- Articulation system: Active articulation
- Segment erector gripping capacity: 140 kN
- Screw conveyor capacity: 150 m³/h
- Belt conveyor capacity: 300 m³/h
- Total equipment length: Approx. 100 m

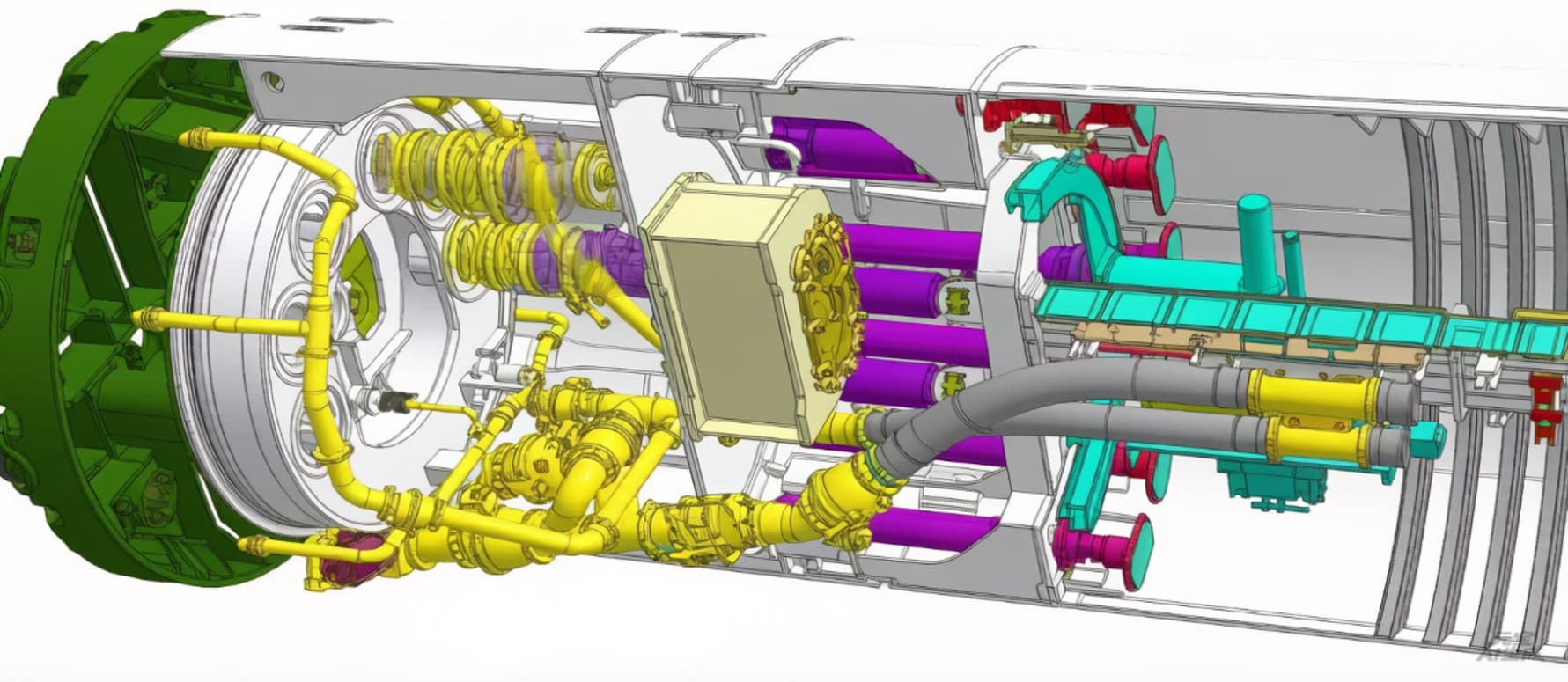

Representative Slurry Shield Machine
- Machine type: Small slurry balance shield machine
- Excavation diameter: Φ5080 mm
- Opening ratio: 35%
- Cutterhead type: Composite cutterhead
- Minimum turning radius: 120 m
- Drive system: Variable-frequency motor drive, 10 units
- Rated torque: 4200 kN·m
- Cutterhead speed: 0.3–4 rpm
- Maximum advance speed: 80 mm/min
- Maximum thrust: 29,000 kN
- Articulation system: Active articulation
- Segment erector gripping capacity: 140 kN
- Slurry discharge capacity: 420 m³/h
- Slurry pump head: 85 m
- Total equipment length: Approx. 100 m
- Applicable segment size: Inner diameter 4.25 m; outer diameter 4.85 m
- Applicable ground: Sand, gravel and water-rich soil formations
技术说明与应用案例
典型小型土压盾构机
- 机型：小型土压盾构机
- 开挖直径：Φ4240 mm
- 开口率：65%
- 刀盘形式：辐条式
- 最小转弯半径：100 m
- 驱动方式：液压驱动，10个
- 额定扭矩：2450 kN·m
- 刀盘速度：0–3 rpm
- 最大掘进速度：80 mm/min
- 最大推力：18,200 kN
- 铰接形式：主动铰接
- 拼装机抓取能力：140 kN
- 螺旋机输送能力：150 m³/h
- 皮带机输送能力：300 m³/h
- 设备总长：约100 m
典型小型泥水盾构机
- 机型：小型泥水盾构机
- 开挖直径：Φ5080 mm
- 开口率：35%
- 刀盘形式：复合式
- 最小转弯半径：120 m
- 驱动方式：变频电机驱动，10个
- 额定扭矩：4200 kN·m
- 刀盘速度：0.3–4 rpm
- 最大掘进速度：80 mm/min
- 最大推力：29,000 kN
- 铰接形式：主动铰接
- 拼装机抓取能力：140 kN
- 排浆能力：420 m³/h
- 排浆泵扬程：85 m
- 设备总长：约100 m
- 适应管片：内径4.25 m，外径4.85 m
- 适应地层：砂层、卵砾石等富水土层
