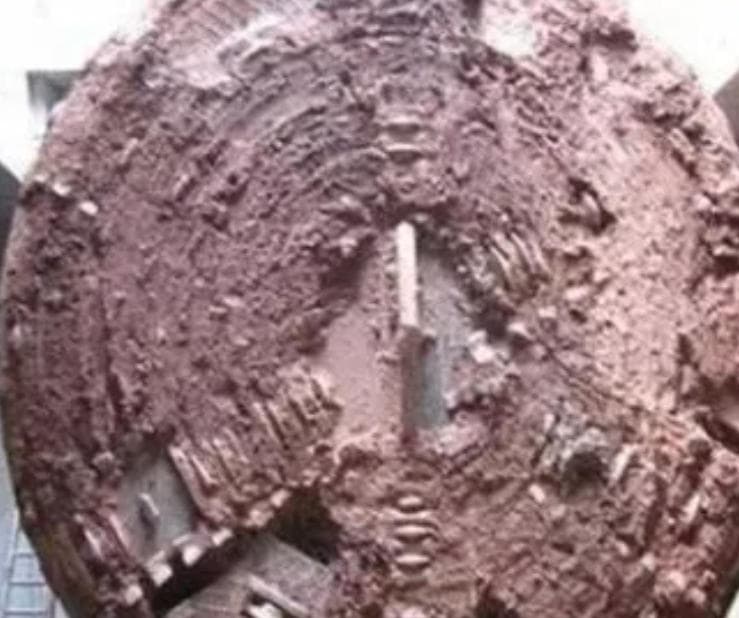

Zhongtian forced stripping agent
Engineering Solution
Mud Cake Prevention and Removal Solutions
刀盘泥饼防治与清除解决方案
Integrated anti-mud cake solution covering mud cake inhibitor, cutterhead anti-mud cake coating, forced stripping agent, and mud cake removal snake robot
集泥饼阻隔剂、刀盘防泥饼涂层、剥除剂和清除泥饼蛇形机器人于一体的盾构泥饼防治与清除方案
Supplied by Fujian Zhongtian Traffic Engineering Technology Service Co., Ltd.
Overview
Solution overview
Fujian Zhongtian provides a mud cake prevention and removal technology chain for shield tunneling in clay, silty soil, mudstone, mixed strata, and slurry shield conditions. The solution includes chemical inhibition of clay adhesion, cutterhead anti-adhesion coating, forced stripping agent for formed mud cakes, and a remotely controlled snake robot for cutterhead flushing, inspection, water jet cleaning, and multifunctional maintenance operations.
福建中天交通面向黏土、粉质土、泥岩、复合地层及泥水盾构工况，提供盾构刀盘泥饼防治与清除技术链。方案包括抑制黏土附着的泥饼阻隔剂、刀盘防黏附涂层、针对已形成泥饼的剥除剂，以及可远程控制的清除泥饼蛇形机器人，用于刀盘冲洗、检查、水射流清洗及多功能维护作业。
Scope
Solution scope
Key components that may be provided for relevant engineering scenarios.
- Mud Cake Inhibitor forms an anti-adhesion protective layer on clay particles
- Mud Cake Inhibitor dosage can be as low as 0.5% to 1% of slurry volume
- Cutterhead coating has low friction coefficient and low surface energy
- Cutterhead coating thickness: 70 to 90 μm
- Forced Stripping Agent supports dissolution and detachment of formed mud cakes
- Snake robot supports remote operation, visual positioning, water jet cleaning, and multifunctional maintenance
- Applicable to complex geological environments and multiple TBM types
- 泥饼阻隔剂可在黏土颗粒表面形成防黏附保护层
- 泥饼阻隔剂掺量可低至浆液总量的0.5%至1%
- 刀盘防泥饼涂层具有低摩擦系数和低表面能
- 刀盘防泥饼涂层厚度为70至90 μm
- 剥除剂可用于已形成泥饼的溶解与剥离
- 蛇形机器人支持远程控制、视觉定位、水射流清洗和多功能维护
- 适用于复杂地质环境和多类型盾构设备
Scenarios
Application scenarios
Typical project conditions where this offering may be relevant.
- Mud cake prevention in slurry shield tunneling
- Mud cake prevention in EPB shield tunneling
- Clay and mudstone strata
- Cohesive soil and mixed strata
- Cutterhead anti-adhesion treatment
- Excavation chamber mud cake removal
- Cutterhead inspection and cleaning
- Water jet cleaning and robotic maintenance
- 泥水盾构泥饼防治
- 土压盾构泥饼防治
- 黏土与泥岩地层
- 黏性土及复合地层
- 刀盘防黏附处理
- 土仓泥饼清除
- 刀盘检查与清洗
- 水射流清洗与机器人维护
Offering Details
Technical Details & Applications
- Mud Cake Inhibitor specification: Liquid, 1250 kg per drum.
- Cutterhead Anti-Mud Cake Coating specification: Liquid, 5 kg per drum.
- Cutterhead coating friction coefficient: 0.05 to 0.15.
- Cutterhead coating thickness: 70 to 90 μm.
- Zhongtian No.1 Forced Stripping Agent specification: Liquid, 200 kg per drum.
- Snake robot functions: Flushing, visual inspection, water jet cleaning, optional non-destructive testing, welding, cutting, and maintenance functions.
技术说明与应用案例
- 泥饼阻隔剂规格：液体，1250 kg/桶。
- 刀盘防泥饼涂层规格：液体，5 kg/桶。
- 刀盘防泥饼涂层摩擦系数：0.05至0.15。
- 刀盘防泥饼涂层厚度：70至90 μm。
- 中天一号剥除剂规格：液体，200 kg/桶。
- 蛇形机器人功能：冲洗、视觉检查、水射流清洗，可拓展无损检测、焊接、切割及维护功能。
